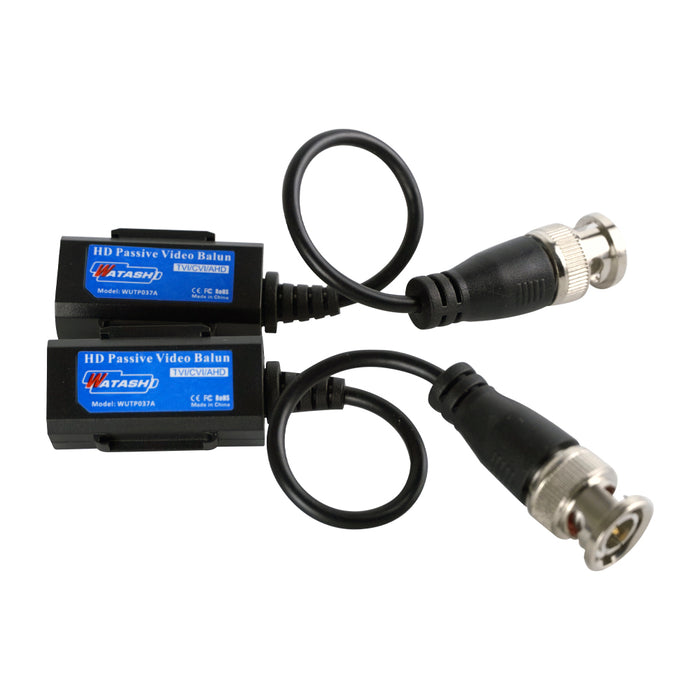

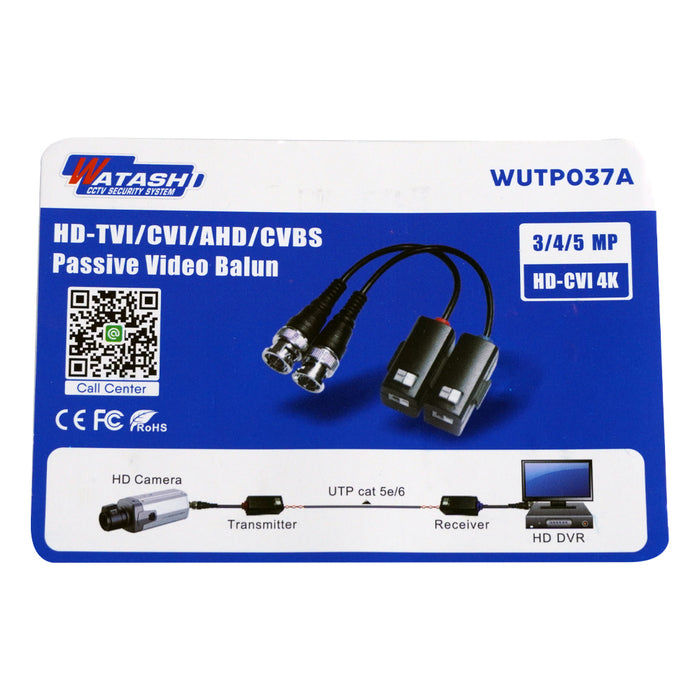

WUTP037A UTP Video Balun วิดิโอ บาลัน CVI+TVI+AHD Transceiver

WUTP037 CVI+TVI+AHD Transceiver NO.N101P

FEATURES

• Compatible with HDCVI/HDTVI/AHD
• Transmission signal: 720P/1080P
• Cable: CAT 5/5e/6
• Nopower required
• Transmission Distance HDCVI 720P: 400m / 1080P: 250m , HDTVI 720P/1080P :250m , AHD 720P: 350m / 1080P: 200m

WUTP037.pdf

SPECIFICATION

Properties

• Transmission Signal : 1channel
• Transmission Distance

                    : HDCVI 720P: 400m / 1080P: 250m

                    :HDTVI 720P/1080P : 250m

                    :AHD 720P: 350m / 1080P: 200m

• Category Type : UTP CAT5/5E/6

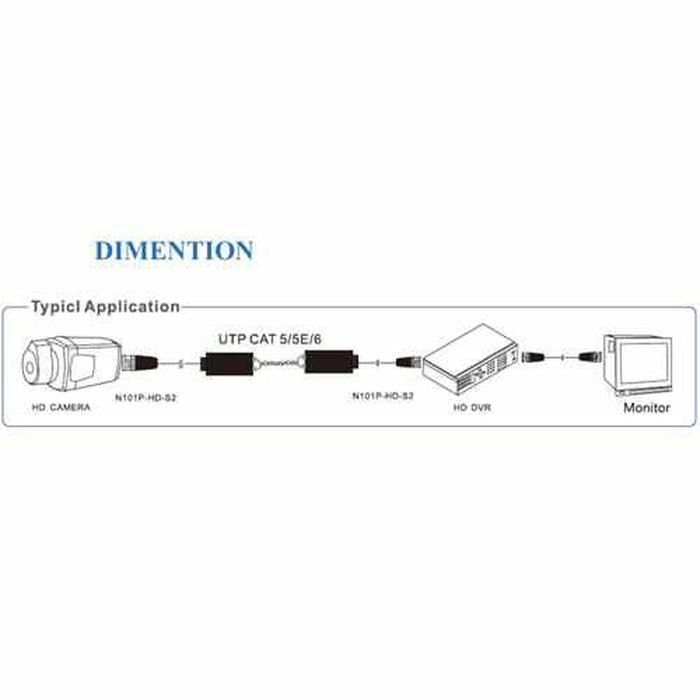

Video Transmission Propertion and Port

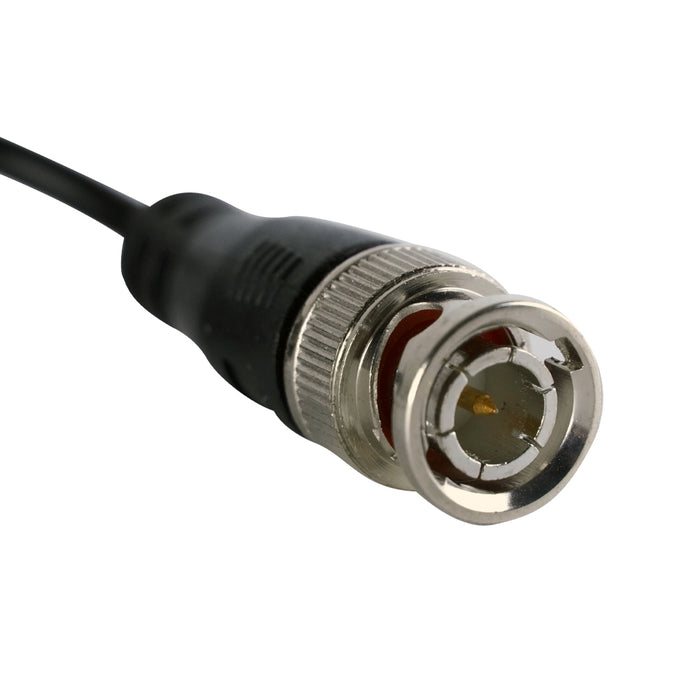

• Coaxiai Video connector : BNC-M
• Twisted-pair Video connector : Push-terminal
• Compatible Format : HDCVI/HDTVI/AHD
• Resolution : 720P/1080P
• Anti-interference : >60db

Protection

• ESD

         : 1a contact discharge electricity level 3
         : 1bair discharge electricity level 3
         : Per: IEC61000-4-2

• Coaxial cable connector : 2KV(common-code)Per: IEC1000-4-5
• UTP Cable Connector : 2KV(different-code), 4KV(common-code),Per: IEC1000-4-5

Impedance

• BNC male : 75ohms
• UTPcable : 100 ohms

PhysicalProperties

• Dimension (L*W*H) : 36.5mm*17.5mm*17.3mm
• Shell : ABS
• Color : Black
• N. W. : 22.6g

Stability

• MTBF : >10000H

Environmental

• Operating Temperature : -10-55℃
• Storage Temperature : -20-70℃
• Humidity : 0-95% (non-condensing)
