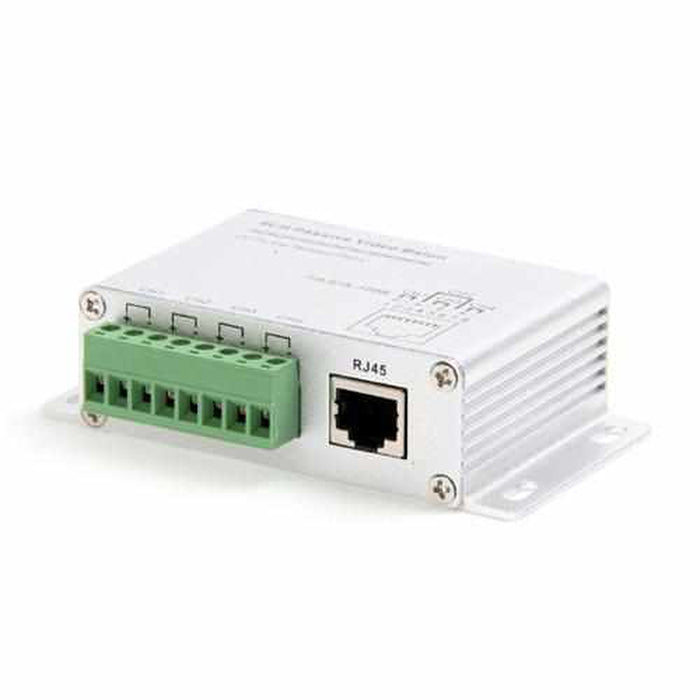

UTP Video Balun 4CH Watashi#WUTP012

by Watashi
฿ 1,200.00 THB

4 Channel Passive Video Balun WUTP012 :

  • 4 channel passive video balun
  • Full-motion CCTV video at distances up to 330m when used with any passive transceiver
  • Up to 1500m with any active UTP video receiver
  • 60 dB crosstalk and noise immunity
  • NTSC, PAL , and SECAM video formats
  • No power required
  • Built-in transient suppression protection
  • Frequency response: DC-8MHZ
  • Attenuation : 0.5dB typ
  • Connectors: Female BNC,Rj45and terminal blocks
  • CMRR (Common Mode Rejection Ratio): 60DB
  • Impedance: BNC: 75Ω ;Rj45/Terminal:100Ω
  • Working temperature: -10? to +70?
  • Storage temperature: -30? to +70?
  • Humidity   :  0 to 95%
  • Dimension: 105mm*58mm*29mm (excluding connectors)
  • Weight :139g
  • Material: Aluminium-alloy
