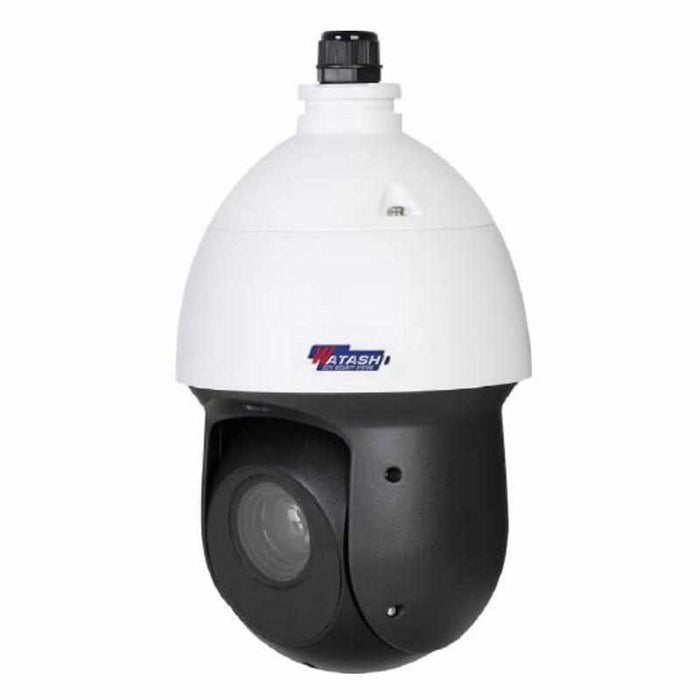

กล้องวงจรปิด รุ่น WSP078N-S2 2.0 MP 25x Starlight IR PTZ Network Camera
Camera
Image Sensor : 1/2.8” Exmor R CMOS
Effective Pixels : 1920(H) x 1080(V), 2 Megapixels
Scanning System : Progressive
RAM/ROM : 1024M/128M
Min. Illumination : Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio : More than 50dB
IR Distance : Distance up to 100m (328ft)
IR On/Off Control : Auto/Manual
IR LEDs : 6
Lens
Focal Length : 4.8mm~120mm
Max Aperture : F1.6 ~ F4.4
Focus Control : Auto / Manual
Angle of View : H: 59.2? ~ 2.4?
Optical Zoom : 25x
Close Focus Distance : 100mm~ 1000mm
PTZ
Pan/Tilt Range : Pan: 0? ~ 360? endless; Tilt: -15? ~ 90?,auto flip 180?
Manual Control Speed : Pan: 0.1? ~200? /s; Tilt: 0.1? ~120? /s
Preset Speed : Pan: 240? /s; Tilt: 200? /s
Preset : 300
PTZ Mode : 5 Pattern, 8 Tour,Auto Pan,Auto Scan
Power up Action : Auto restore to previous PTZ and lens status after power failure
Idle Motion : Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Speed Setup : Human-oriented focal Length/ speed adaptation
Protocol : DH-SD
Intelligence
Auto Tracking : N/A
IVS (optional) : Tripwire, Intrusion,Abandoned/Missing, Face Detection
Video
Compression : H.265/H.264 / MJPEG
Streaming Capability : 3 Streams
Resolution : 1080P(1920?1080)/720P(1280?720)/D1(704?576/704?480)/CIF(352?288/352?240)
Frame Rate : Main Stream 1080P/720P(1~50/60fps), Sub Stream 1 D1/CIF(1 ~ 25/30fps), Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate : H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~10240Kbps
Day/Night : Auto(ICR) / Color / B/W
Backlight Compensation : BLC / HLC / WDR(120dB)
White Balance : Auto,ATW,Indoor,Outdoor,Manual
Gain Control : Auto / Manual
Noise Reduction : Ultra DNR (2D/3D)
Motion Detetion : Support
Region of Interest : Support
EIS : N/A
Defog : Support
Digital Zoom : 16x
Flip : 180
